    Name: H beam gantry saw welding machine
    Introduction:

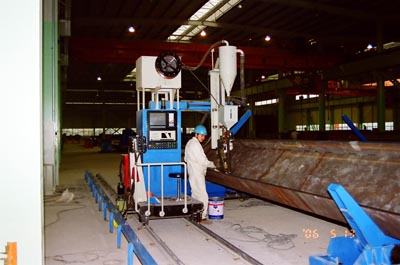

    H-beam gantry submerged arc welding machine

    Using cymbiform submerged arc welding; when welding, workpiece is fixed, but portal frame moves. Gantry frame adopts frequency timing; equipped a set of welding torches at each 2 groups of guiding column on the beam; use electric dynamo driving to adjust shifting up and down; use manual adjusting device to adjust shifting left and right. Lead arc device do gmechanic tracking to welding seam, which can get high quality of welding line; automatically recycle the flux and save labor.
    Dimension of applicable H beam
    Height
    200-1500mm
    Width
    200-800mm
    Length
    2000-15000mm
    Diameter of applicable soldering thread
    3.2-5mm
    Back speed
    4000mm/min
    Welding speed
    250-1200mm/min
    Rail span
    4000mm
