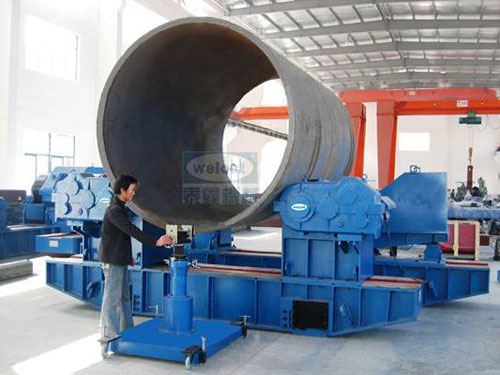

Anticreep roller bed
As per market and customers request, our company has designed GKF series anti-creep roller bed. It is main composed of power frame roller, idler frame roller(anti-creep roller), checking unit, controlling system, conductive unit and so on.
With big load capacity, strong driving capacity, long life and stably capability. Adopting AC break motor, the circle speed is stably and equal, small waving. The controlling system is intergrated, has remote controller, easy to operate.
Type |
GKF-100 |
GKF-200 |
GKF-300 |
GKF-500 |
GKF-600 |
GKF-800 |
GKF-1000 |
GKF-1200 |
Load(T) |
100 |
200 |
300 |
500 |
600 |
800 |
1000 |
1200 |
Line speed(mm/min) |
100-1000 |
Workpiece diameter(mm) |
850-6500 |
850-6500 |
1000-6500 |
1000-6500 |
1200-6500 |
1200-6500 |
12000-6500 |
1200-6500 |
Wheel size(mm) |
Diameter |
580 |
600 |
640 |
700 |
700 |
800 |
850 |
850 |
|
Width |
200 |
240 |
250 |
300 |
350 |
350 |
500 |
500 |
Power |
2*2.2 |
2*2.2 |
2*3 |
2*7.5 |
2*11 |
2*11 |
2*15 |
2*15 |
Size(mm) |
L |
5600 |
6200 |
6400 |
6600 |
6800 |
6800 |
7650 |
8000 |
W |
680 |
680 |
1000 |
1250 |
1250 |
1350 |
1450 |
1450 |
H |
1450 |
1450 |
1450 |
1950 |
1950 |
2250 |
2450 |
2450 | |
