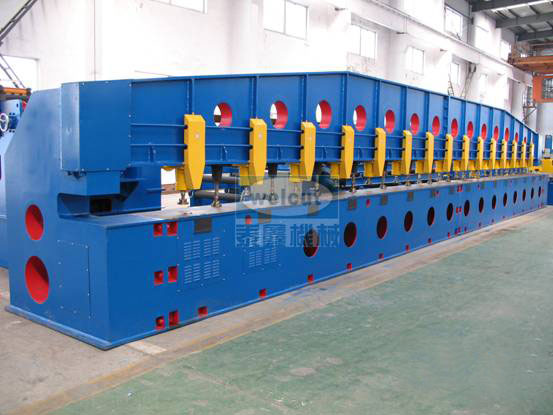

Edge milling machine

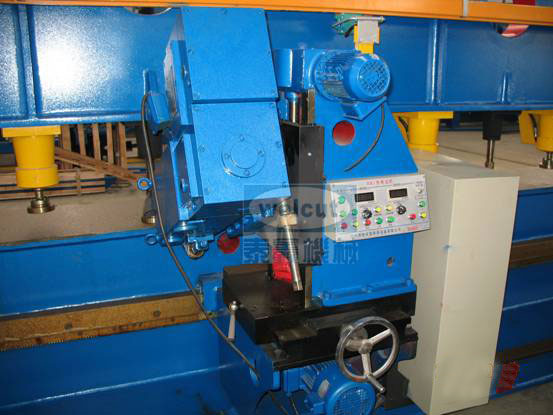

Compared with the traditional edge milling machines, this machine series is dismountable in their tracks, more rational in structure by heat-treatment of the bench, more reliable and stable in the milling & turning head`s running. The feed and feed-back systems are fully independent respectively. The feed and feed-back systems are fully independent respectively. The feed-back is quick and is highly efficient. The angle of the milling tool`s tray is convenient in adjustment, and the custom-built tool rest and the normal tool rest can be inter-converted. They are updated products of the traditional edge milling machine.

Type	GBX-3	GBX-6	GBX-9	GBX-12	GBX-15	GBX-18
Effective milling zone length(mm)	3	6	9	12	15	18
Milling angle adjustment	0-45	0-45	0-45	0-45	0-45	0-45
Applicable steel plate thickness(mm)	6-50	6-50	6-50	6-50	6-50	6-50
Max milling width by on pass(mm)	8	8	8	8	8	8
Milling travel speed(m/min)	0.25-0.6	0.25-0.6	0.25-0.6	0.25-0.6	0.25-0.6	0.25-0.6
Spindle speed(rpm)	125-630	125-630	125-630	125-630	125-630	125-630
Hydraulic pressure(mPa)	3.5	3.5	3.5	3.5	3.5	3.5
Number of clamping shoes(ea)	5	8	11	15	19	23
Pass height(mm)	900	900	900	900	900	900
Feeding motor capacity(Kw)	1.5	1.5	1.5	1.5	1.5	1.5
Hydraulic motor capacity(Kw)	4	4	4	4	4	4
