    Name: Mini-CNC cutting machine(CNC-1000W)
    Introduction:

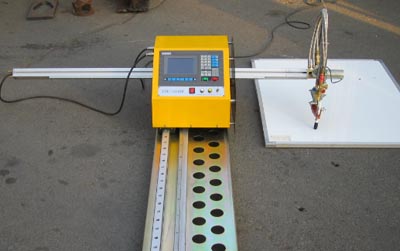

    Mini-CNC cutting machine

    The CNC-1000W Mini-cutting machine is same as the gantry big CNC cutting machine. It can cut kinds of complex plane shapes. And it adopts the oxygen gas flame cutting machine and plasma cutting machine. The CNC-1000W mini-cutting machine is very convenient and also can be moved anytime. Save the useful space.
    The character has small volume and anti-jamming. The machine has simple programmer. The documents keeping and taking are also very agile. The operation is simple and convenient. And also it has the dynamic and static state shape processing showing.

    Products features:
    Small volume and anti interference
    Simple programmed jacking.
    Convenient file access.
    Simple and convenient operation.
    Dynamic/static graphic processing display.

    Main technical parameter
    Effective cutting range: 1000¡Á1500mm
    Maximum freewheeling speed: 3000mm/min
    Cutting speed: 50-2000mm
    Cutting thickness: flame: 5-150mm
    Depends on magnitude of customer plasma power supply
    Operating voltage: AC220V
    External dimensions: 1600¡Á2050¡Á350
    Body dead weight: 55Kg.
